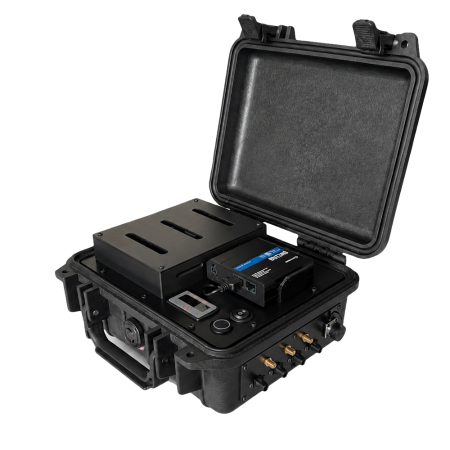

BV1200 AXIS F91
BATTERY-POWERED CAMERA CASE
The BV1200 case transforms the Axis F-Series main unit into a fully portable, battery-powered surveillance hub. Engineered for tough environments and with a rugged design built for discretion, it’s ready for rapid deployment anywhere. Comes with the free Axis app for live viewing and control, plus ONVIF support for smooth integration with third-party systems—giving you the flexibility and performance you need when it matters most.

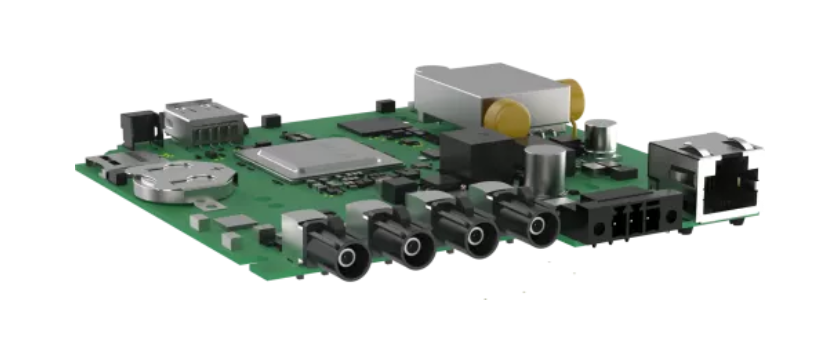

AXIS F91- MAIN UNIT
The main unit supports four channels operating simultaneously, enabling comprehensive coverage from multiple camera positions. With a range of compatible cables and sensor types, the system is ideal for discreet or covert deployments both in vehicles and in the field. Engineered for rugged, high-demand environments, it delivers reliable performance under the toughest conditions.
AI BASED CHIP & CYBERSECURITY
The Axis ARTPEC-8 chip is AI-driven with powerful deep learning capabilities, delivering crystal-clear imaging and lightning-fast edge analytics for advanced object detection right inside the camera. With Lightfinder 2.0, you get true-to-life colors and exceptional detail, even in the darkest conditions.
Axis is renowned for its high-security standards. Its hardware-based cybersecurity platform, Axis Edge Vault, together with secure boot, signed firmware, and encrypted data, ensures your system remains protected at all times.

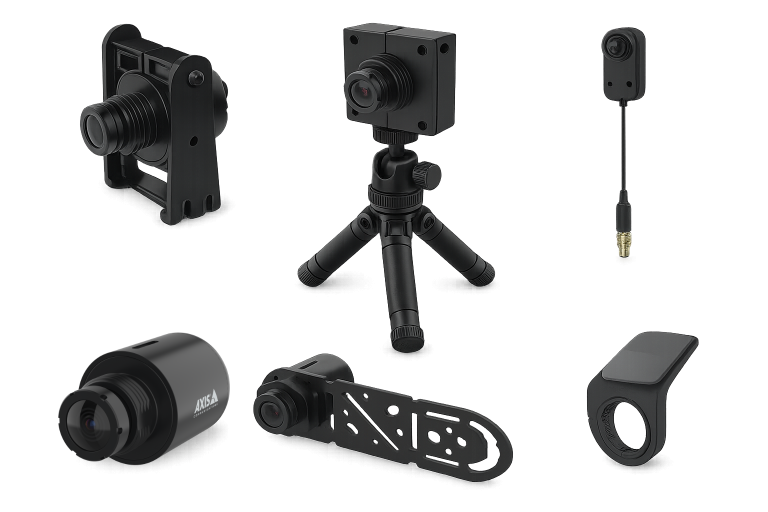

THE CAMERAS
For scenarios where discretion and image precision are critical, the Axis F-Series modular cameras deliver outstanding performance. The bullet sensor offers sharp 5 MP resolution with interchangeable M12 lenses for tailored fields of view, while the pinhole sensor integrates discreetly behind surfaces. Both feature Forensic WDR, Lightfinder, and IP66/67-rated durability for reliable operation in the most demanding environments.

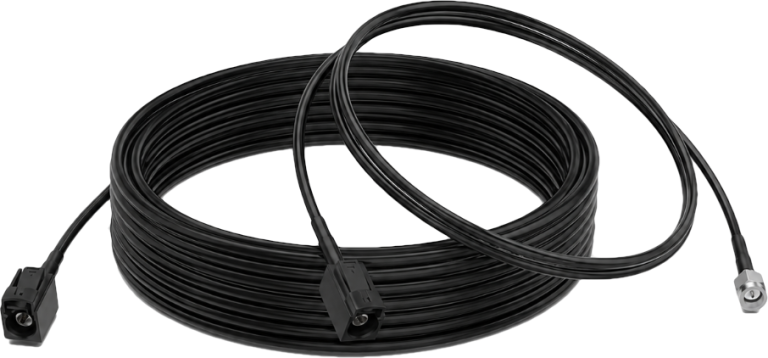

CABLES
Rugged indoor/outdoor cables available in multiple lengths, enabling camera placement up to 60 m apart. The TU6004-E (5 mm) offers lengths up to 30 m, while the slimmer TU6007-E (3 mm) is available in 1 m and 8 m versions for discreet, tight-space installations. Both feature robust weatherproof ratings and deliver secure, high-quality connections.

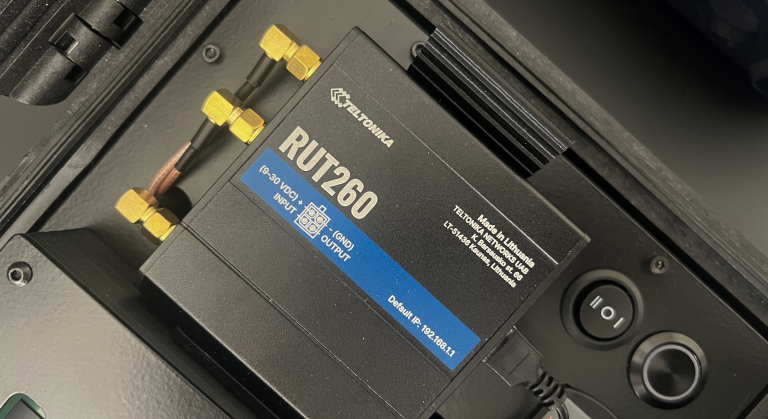

4G & WIFI ROUTER
The case comes with a Teltonika RUT260 CAT6 4G router, delivering fast, stable, and secure connectivity anywhere. Advanced features include VPN, robust firewall, WPA2/WPA3 encryption to keep your network and data safe.
You can also switch off/on Wi-Fi or mobile data via SMS to save power and stay discreet in the field.
For other router options, contact us.
20A LIFEPO4 BATTERY
This small case is equipped with a high-capacity 20A LiFePo4 battery delivering 256 Wh of energy. LiFePo4 technology is not only the safer choice compared to standard lithium batteries, but it also offers a significantly longer lifespan.
Enjoy complete autonomy for up to 24 hours when running all four cameras. For longer operations you can connect a external battery or mains power.
UPS CONTROLLER
Our UPS is an intelligent power management board that allows you to connect mains power or external batteries to the case, ensuring uninterrupted operation. It uses the built-in battery as backup in case of power loss.
It also features built-in safety functions that automatically shut down the case in the event of a fault, high temperature or excessive voltage, protecting both your equipment and power source.
THE CASE
Built for maximum scalability, the system is housed in a compact Peli 1200 case (27.1 × 24.8 × 12.3 cm) and designed for quick, tool-free service ability —allowing you to swap the Axis F91 main unit or router in minutes.
External FAKRA connectors ensuring a secure connection while giving you the freedom to source additional cables and camera sensors from Axis anywhere in the world. Compact, adaptable, and field-ready—this system is built to keep you operational wherever the mission takes you.
